Compatibility with Process Fluids: Ensuring the ceramic material is compatible with the specific chemicals and operating conditions of the process. Pressure Drop and Capacity: Optimizing the packing design to balance the desired pressure drop and process capacity requirements. Installation and Maintenance: Ensuring proper installation and accessibility for maintenance and cleaning, if necessary.

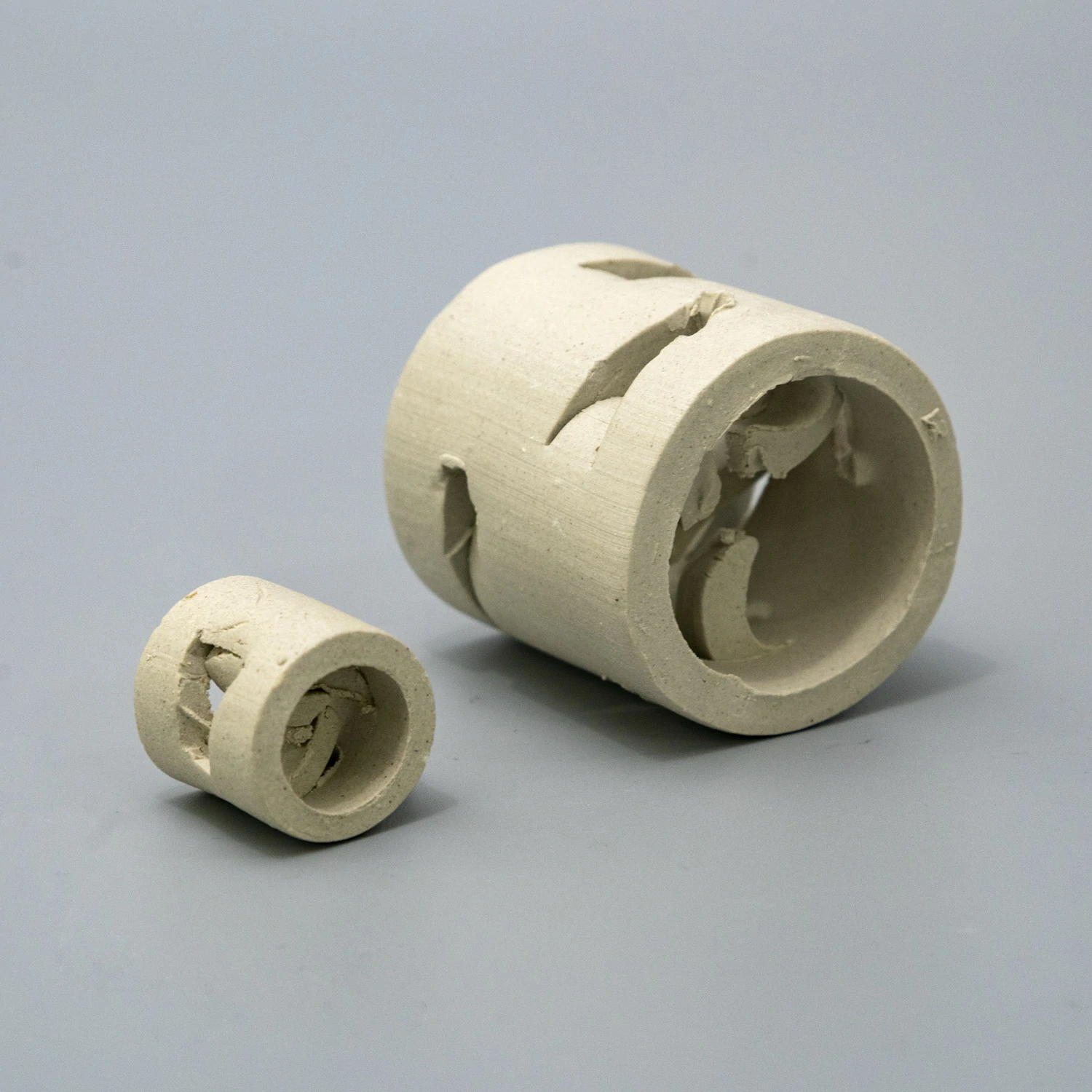

Ceramic pall ring is a type of classical random packing, which is developed from the Raschig ring. Commonly, there are two layers of windows opened along its cylinder wall. Each layer has five ligules bending inward the axes of the ring, which is similar to the metallic pall ring and plastic. But the layer and quantity of ligules may different according to the height and diameter variation.
Rachig ring’s birth has indicated a big breakthrough of Tower packing. Due to simply structure & cheap cost, it is very popular in the early of 19th century. However, in the actual application, we often found that Rashig ring’s inside surface has not been fully wet by liquid.This phenomenon will cause liquid’s wall flow,Channel flow and other problems. Finally, it was be eliminated slowly.However, as the earliest Tower packing, it also meet low requirement tower design. Furthermore, it also can regard as calculated basis for Tower Height’s design.
Compared with Ceramic Berl Ring, it changes the both arched surface to rectangulor surface.This change increases packings contacting gap and promotes air-liquid’s flow and dispersion. Owing to Ceramics have excellent acid and high temperature resistance characteristic, it is very suitable in High temperature and corrosive environment. In addition,as ceramics are very brittle, it is very easy to broken in a long distance transportation. It is mainly used in petrochemical and RTO field, especially in the drying tower and absorption tower for sulfuric acid production.

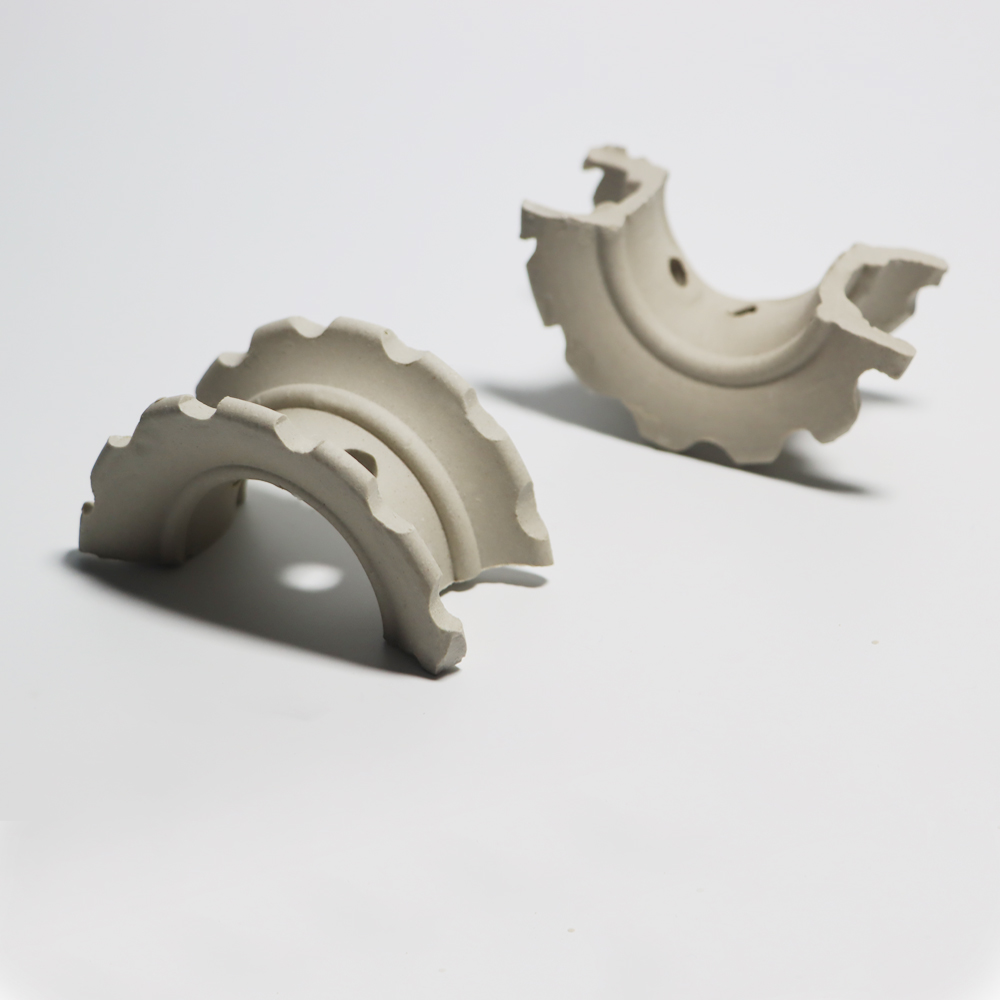

The outstanding structure feature is to change tooth type edge instead of Arc type edge. This change increases packings contacting gap and promotes air-liquid’s flow and dispersion. Owing to Ceramics have excellent acid and high temperature resistance characteristic, it is very suitable in High temperature and corrosive environment.Ceramic intalox saddles relate to irregular acid-resistant packing. The surface of the Intalox saddle is part of the torus. Compared to Raschig rings, Intalox saddles with the same size of packed bodies have a 25% larger specific surface area and a slightly larger free volume. Saddle-backed packing has less hydraulic resistance and greater efficiency, than the Raschig rings.Moreover,as ceramics are very brittle, it is very easy to broken in a long distance transportation. It is mainly used in petrochemical and RTO field, especially in the drying tower and absorption tower for sulfuric acid production.
Ceramic Cascade Mini Ring absorbs the characteristics of the ceramic Raschig ring and Pall ring. the tapered flanging on the end of Ceramic Cascade Mini ring is not only reduce air resistance,but also increase air flux. Due to its own asymmetric structure,it will increase the Directional probability when filling. Additionally, also change packing’s contacting way from linear to point. Point contacting provide more contacting area for gas passing, also promote packing’s surface liquid-film renew. Therefore, It is a kind of packing with high mass transfer efficiency.
Ceramic Cross-partition ring deign’s purpose is increase packing surface area to improve mass transfer effieiceny..Due to ceramic cross-partition ring  belong to regular acid-resistant pickings for distillation and rectification columns.it will increase Cross shape septum in the ring’s inside. This design is not only enlarge packing surface area, but also increase its Compressive strength they are put (stacked) in packing layer position of  the column. Additionally, large void ratio is rarely to cause channeling and Wall Flow Phenomenon happening, it is usally regard as tower bottom packing support layer.
Ceramic lessing Rings are a packing designed basically from the raschig ring with partitions inside to increase the surface and enhance the transfer efficiency. It is usually used extensively for the supporting packing at the bottom of tower. Ceramic lessing ring has high density and excellent heat and acid resistance and it withstands the corrosion of various inorganic acid, organic acid and organic solvents except fo hydrofluoric acid. Ceramic Lessing Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry.Meanwhile,Owing to ceramic Lessing ring’s wavy type edge can form many storage space,It is very easy to keep thermal energy a long time. In the process of heat absorption and release, it has not only reduce power cosumption, but also sustain RTO system thermal stabiblity. So Ceramic lessing one ring as an important heat transfer media, also used in the heat transfer system, regenerative oxidizers system (RTO ).
It is an ideal support media.Owing to its unique structure enables an upper support layer with a typical diameter of 11.5 mm to effectively retain a bed of 1.6 mm catalyst without any migration into the support layer. This eliminates the need for micro-sized spherical support balls, reduces the number of support layers needed, reduces pressure drop and increases the space available for catalyst or adsorbent in the process reactor. In addition, Wave type shape ensure sufficient gaps between the packings to promote air’s freedom flow. Also overcome packig bed’s unevenly heat destribution phenomenon happening.
