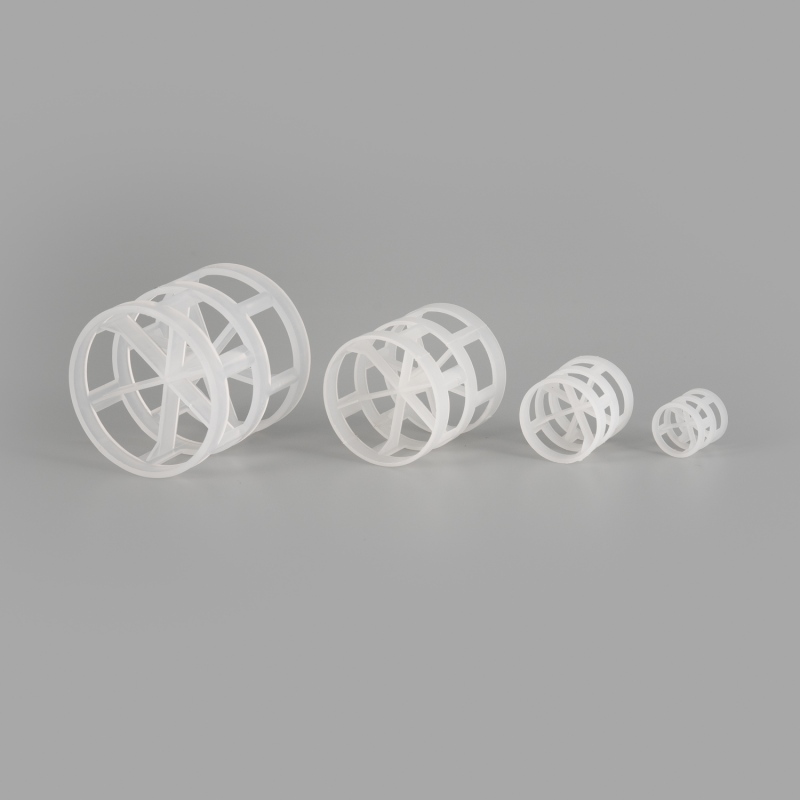

Plastic pall ring PP PVDF CPVC 25 38 50

Plastic Pall ring birth is aim to overcome Raschig rings wall flow, Internal channels are not easy to wet,Long gas return path and so on. Since birth, Plastic Pall ring was recognized the common random packing in mass transfer field. Widely apply in absorption, scrubbing and stripping field.Under the same operation condition, Plastic Pall ring’s air velocity flux is 50% larger than the Raschig ring, and mass transfer efficiency is 30% higher.By minimizing the number of contours and crevices that can cause liquid hold-up and potential entertainment, Plastic Pall ring’s opened cylinder walls and inward bent protrusions allow greater capacity and lower pressure drop than standard cylindrical rings.Plastic pall ring PP PVDF CPVC 25 38 50

Plastic pall ring PP PVDF CPVC 25 38 50: Plastic pall ring PP PVDF CPVC 25 38 50 invented by German BASF,the first generation Plastic Random packing. To compared with Raschig ring.

High Temperature Resistance Chemical Random Tower Packing Ceramic Pall Ring

Ceramic pall ring is a type of classical random packing, which is developed from the Raschig ring. Commonly, there are two layers of windows opened along its cylinder wall. Each layer has five ligules bending inward the axes of the ring, which is similar to the metallic pall ring and plastic. But the layer and quantity of ligules may different according to the height and diameter variation.

Short Description:

Copper Corrugated plate packing can serve as a support for catalysts in various chemical reactions, providing a high surface area for the catalytic processes to occur. This application is common in the petrochemical industry, where the packing is used in catalytic reactors for processes like hydrocracking, reforming, and hydrotreating.

Copper corrugated plate packing

Copper Corrugated-plate packing

Copper Corrugated-plate packing is constructed in modules. The vertical blades of the packing are fixed in position with welded cross members. During installation of either style, each successive layer of the grid packing is rotated 45 degrees to the previous layer. This specific orientation eliminates horizontal planes where liquid and/or solids can collect. The Style 3 packing has a greater projected area perpendicular to the gas flow causing higher localized vapor velocities, effectively providing higher efficiencies.

Technical Parameter of corrugated plate packing

Type	Theoretical Plate Number NT/(1/m)	Surface area a/(m2/m3)	Void ratio/ %	Liquid Loading/ U m³/(m².h｝	F Factor Fmax/ m/s(Kg/m³)0.5｝	Pressure Drop (Mpa/m)
125Y	1-1.2	125	98.5	0.2-100	3	2.0*10 -4
250Y	2-3	250	97	0.2-100	2.6	3.0*10 -4
350Y	3.5-4	350	95	0.2-100	2.0	3.5*10 -4
500Y	4-4.5	500	93	0.2-100	1.8	4.0*10 -4
700Y	6-8	700	85	0.2-100	1.6	4.6-6.6*10 -4
125X	0.8-0.9	125	98.5	0.2-100	3.5	1.3*10 -4
250X	1.6-2	250	97	0.2-100	2.8	1.4*10 -4
350X	2.3-2.8	350	95	0.2-100	2.2	1.8*10 -4

Trade Details of copper corrugated plate packing

Related Trade Information
HS Code	8419909000
Package	1: Two Super sacks on Fumigation Pallet 2: 100L plastic woven bag on Fumigation Pallet 3: 500500500 mm carton on Fumigation Pallet 4: Upon your requirement
Process Method	Stamping,Cutting and welding.
Material	PP,PVC,PFA,PE,CPVC,PVDF,PPS.PES,E-CTFE,FRPP and so on
Typical Application	1.Monomers from plastics (MDI, DMT, etc.) 2.Fatty acids, fatty alcohols, fatty acid esters 3.Mono, di, tri, and tetra-ethylene glycols 4.Pharmaceutical products (vitamins, etc.) 5.Fragrances (menthol, geraniol, etc.) 6.Separations of mixed isomers 7.Fine chemicals 8.Flue Gas Absorber
Production time	7 days against one 20GP container loading quantity
Executive standard	HG/T 21559.2-2005 or refer to your detailed requirement
Sample	Free samples within 500 Grams
Other	Accept EPC turnkey,OEM/OEM,Mold Customization,Installation&Guidance,Test, Entrusted design service etc.

Typically Application of corrugated plate packing

1. Scrubbers with High Solids

2. Coker Fractionators

3. Atmospheric Crude Units

4. Vacuum Crude Units

5. Resid Cracker

6. Reactor Off-Gas Scrubbers

7. Cracked Gas Quench Towers

8. Edible Oil Deodorizers

Feature of copper corrugated plate packing

Corrugated plate packing, also known as structured packing, is used in a wide range of industrial applications where efficient mass transfer and separation are required. Here are some of the common applications of corrugated plate packing:

Distillation Columns:
Corrugated plate packing is widely used as the packing material in distillation columns, which are essential in chemical, petrochemical, and refining industries.
The high surface area and efficient mass transfer characteristics of the packing enhance the separation and purification of various components, such as hydrocarbons, alcohols, and other chemicals.
Absorption and Desorption Processes:
Corrugated plate packing is employed in absorption and desorption towers, where it facilitates the transfer of a component from one phase to another.
This includes applications such as gas sweetening (removal of acid gases like CO2 and H2S from natural gas), flue gas treatment (removal of pollutants from industrial exhaust), and solvent recovery processes.
Fractionation Columns:
Corrugated plate packing is used in fractionation columns, which are commonly found in refineries and petrochemical plants.
These columns separate complex hydrocarbon mixtures into individual components, such as gasoline, kerosene, and diesel, through efficient mass transfer and separation.
Reactive Distillation:
Corrugated plate packing can be used in reactive distillation columns, where chemical reactions and separation occur simultaneously.
This application is found in the production of various chemicals, such as esters, ethers, and organic acids, where the packing enhances the reaction and separation efficiency.
Drying and Evaporation Processes:
Corrugated plate packing is employed in drying and evaporation equipment, such as those used in the chemical, pharmaceutical, and food industries.
The high surface area and effective mass transfer provided by the packing facilitate the efficient drying or evaporation of the target materials.
Gas-Liquid Contacting:
Corrugated plate packing is used in gas-liquid contacting processes, where it enhances the interaction and mass transfer between the gaseous and liquid phases.
Examples include gas absorption, gas desorption, and gas-liquid reactions, as found in industries like chemical manufacturing and environmental pollution control.
Catalytic Processes:

Ayrtter mainly developed in mass transfer product, tower internals, wastewater treatment filler, VOCS series, cooling tower filler, random & structured packing, EPC project and on. Furthermore, owned 2 international patents and 5 Chinese patents on the development journey.
