Short Description:

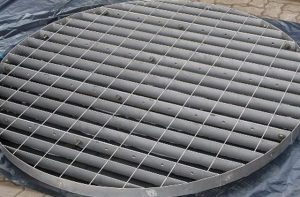

Structured Packing Support Grid is a vital component used in distillation columns and separation towers to support structured packing materials. It improves stability, fluid distribution, and separation efficiency, making it ideal for chemical plants and refineries.

Structured Packing Support Grid designed to support structured packing in distillation columns and separation towers. Enhance efficiency, reduce pressure drop, and ensure stability in chemical plants and refineries

What is a Structured Packing Support Grid?

Structured Packing Support Grid is a support structure used in distillation columns and separation towers to hold structured packing materials in place, ensuring stability and uniform distribution of fluids for optimal mass transfer.

How Structured Packing Support Grids Work

The Structured Packing Support Grid supports the packing materials, preventing them from collapsing or shifting, which ensures efficient fluid flow and improves separation performance in chemical processes.

Materials and Durability of Structured Packing Support Grids

Structured Packing Support Grid Made from durable, corrosion-resistant materials such as stainless steel, Structured Packing Support Grids are designed to withstand harsh operating conditions, making them ideal for refineries, chemical plants, and other industrial applications.

Benefits of Using Structured Packing Support Grids

Structured Packing Support Grids improve the stability and performance of structured packing in distillation and absorption columns, leading to reduced pressure drop, enhanced separation efficiency, and lower operating costs.

Outstanding High Quality Structured Packing Support Grid For Tower — *Structured Packing Support Grid*

Ayrtter mainly developed in mass transfer product, tower internals, wastewater treatment filler, VOCS series, cooling tower filler, random & structured packing, EPC project and on. Furthermore, owned 2 international patents and 5 Chinese patents on the development journey.
