Outstanding PP Plastic Wire Mesh Mist Eliminator for Tower

Product Categories

Featured products

FPRH desulfurization packing for coking plant

FPRH desulfurization packing is made of synthetic plastic injection molding. The formula can be adjusted according to different working conditions to achieve the best effect. It completely replaces the light porcelain fillers commonly used before. The light porcelain has high water absorption, fragile, high resistance and small specific surface area. our invented Sculpture desulfurization packing can be used repeatedly, with large specific surface area and large ventilation capacity, and its effectiveness is twice that of light porcelain. Especially in the process of maintenance,the light porcelain filler becomes solid waste, indirectly increase processing cost of solid waste.However,FPRH desulfurization packing has fullly avoided this phenomenon happening. At the same time, it will regard as recycled-resource to secondary utilize.

Effective eliminate mist Tooth Type Teller rosette ring

Tooth Type Teller rosette rig is an improved product of ordinary teller rosette ring. The most obvious difference is Tooth Type structure. Although Tooth Type teller rosetter ring surface area is close to or equal to the ordinary packing, but caused more intersititial hold-up points on its surface, it will create more re-contact surface and point for air-liquid contacting. Under the same volume, Static pressure loss can reduce 40-50% than others. Under the same pressure drop, the filling volume will recue 35-50%. Furthermore, processing efficiency will increase 26-35% than other packing.Tooth type teller rosette ring can be operated at capacities up to the phase inversion point,owing to their open filamentous configuration, phase inversion in teller resette packed column can be reversed by simply reducing either the gas or liquid flow.The tower does not have to be shut down and restartedTherefore, Tooth Type Teller rosette ring is being used with effective results in wet scrubbers,cooling towers,entrainment separations,absorption and stripping column,and air washer.

Ceramic Super Saddle Ring

The outstanding structure feature is to change tooth type edge instead of Arc type edge. This change increases packings contacting gap and promotes air-liquid’s flow and dispersion. Owing to Ceramics have excellent acid and high temperature resistance characteristic, it is very suitable in High temperature and corrosive environment.Ceramic intalox saddles relate to irregular acid-resistant packing. The surface of the Intalox saddle is part of the torus. Compared to Raschig rings, Intalox saddles with the same size of packed bodies have a 25% larger specific surface area and a slightly larger free volume. Saddle-backed packing has less hydraulic resistance and greater efficiency, than the Raschig rings.Moreover,as ceramics are very brittle, it is very easy to broken in a long distance transportation. It is mainly used in petrochemical and RTO field, especially in the drying tower and absorption tower for sulfuric acid production.

Metal wire mesh demister for droplet seperation

In many process operations the removal of entrained material in vapour flows is essential. Metal Wire Mesh Demister units is many used in separation of over 3-5 μm liquid droplet.When the foam with the fog rising at a rate of gas through a certain screen, due to the inertia of the role of fog rising foam, foam will collide with screen’s surface and attach to the its surface. When foam slowly forming a big droplet, the larger droplets to form fog foam flow along the filament between two wire junction points. Finally, once droplets weight exceeds its weight & gas liquid surface tension, droplets separated from the filaments.Metal Wire Mesh Demister was consist of Beam, Hold down bar, Hold Down plate,supporting plate,sealing plate,retaining ring and so on.It is widely used in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping, environment protection and for fuel gas scrubber.

Water body covering medium Plastic Hollow ball

This ball was made by blow molding technology. So this ball has not any cracks.Traditionally, this ball is used in water treatment. When millions of Plastic Hollow ball onto the surface of a liquid, the balls automatically form a liquid covering surface. This covering surface provides an extremely effective barrier and significantly reduces the mass and heat transfer mechanisms operating between the liquid and surrounding environment.At present, according to scientists’ continuous development and innovation, this balls application will become more wider. Such as prevent birds from landing and nesting on the liquid’s surface and around place,use as a check-valve ball in flow control applications, shock absorption in building field and so on.

Liquid-vapor seperating device Mist Eliminator

It is is a device often fitted to vapor liquid separator vessels to enhance the removal of liquid droplets entrained in a vapor stream.It is made out of aluminum, galvanized steel and stainless steel materials. When desulfurized flue gas passing through Metal Mist Eliminator at a certain speed, flue gas will be quickly change movement way. Due to the inertia and centrifugal’s driven, droplet collides with Vane and gather to form water flow. Finally, when droplet forms bigger ones,It will fall down. The most common process design for Mist eliminator is in a vertical gas flow, but it is also possible to install Mist Eliminator in the horizontal gas flow. The choice of vanes and design is influenced by the system pressure loss, the cleanability of the mist eliminator and the risk off clogging.The mist eliminator system consists of the mist eliminator body and a flushing system. Generally, it is composed of two-level demister body with different specifications, flushing water pipes, nozzles, supporting frames, supporting beams and related connections, fixing parts, and sealing parts.

Short Description:

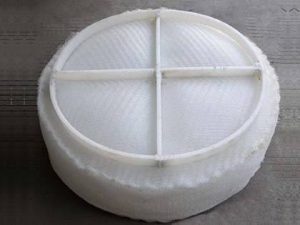

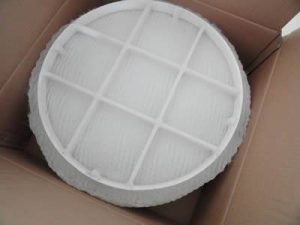

PP Plastic Wire Mesh Mist Eliminator is an effective device for mist removal in gas streams. Made from durable PP plastic, it improves gas-liquid separation, enhances mass transfer efficiency, and is widely used in chemical plants and refineries.

Product Detail

PP Plastic Wire Mesh Mist Eliminator for efficient mist removal in gas streams. Enhance separation, improve process efficiency, and reduce emissions in chemical plants and refineries.

What is a PP Plastic Wire Mesh Mist Eliminator?

PP Plastic Wire Mesh Mist Eliminator for Mist Separation is designed to remove mist and droplets from gas streams in industrial applications. Made from durable PP plastic, it provides excellent corrosion resistance for long-lasting performance.

How PP Plastic Wire Mesh Mist Eliminators Work

The PP Plastic Wire Mesh Mist Eliminator uses fine wire mesh to capture mist particles from gas, improving the separation process and reducing emissions. It’s highly effective in applications such as chemical plants and refineries.

Materials and Durability of PP Plastic Wire Mesh Mist Eliminators

Wire Mesh Mist Eliminator Made from high-quality PP plastic, these mist eliminators are resistant to harsh chemicals and high temperatures, ensuring reliable performance even in demanding environments.

Benefits of Using PP Plastic Wire Mesh Mist Eliminators

PP Plastic Wire Mesh Mist Eliminators offer low-pressure drop, excellent mist removal, and enhanced separation efficiency, making them an effective and cost-efficient solution for gas-liquid separation in industrial processes.
