Plastic Pall Ring Say Goodbye to Low Mass Transfer Rates with Best Sale High Performance 38mm 50mm Plastic Pall Ring

Product Categories

Featured products

Versatile Standard Packing Intalox saddle ring

Owing to Plastic Intalox Saddle ring’s shape is like saddle, so called saddle ring or Berl Ring.The earliest saddle ring’s material is ceramic. In our actual application, when gas flows upward, liquid will flow downward along with arc channel.This Movement way will directly reduce wall flow’s happening. However, Arched external frame also cause overlapping & bridging.Therefore, scientists change two ends into rectangle type contact surface. Plastic Intalox Saddle ring prevents the packing from interlocking or entangling, ensuring the randomness and optimum surface area within the packed bed, while the internal fingers, arches and vanes promote optimum interfacial gas/liquid contact with minimal drag or hold-up.

low aspect ratio cascade mini ring

Ceramic Cascade Mini Ring absorbs the characteristics of the ceramic Raschig ring and Pall ring. the tapered flanging on the end of Ceramic Cascade Mini ring is not only reduce air resistance,but also increase air flux. Due to its own asymmetric structure,it will increase the Directional probability when filling. Additionally, also change packing’s contacting way from linear to point. Point contacting provide more contacting area for gas passing, also promote packing’s surface liquid-film renew. Therefore, It is a kind of packing with high mass transfer efficiency.

252Y plate corrugated packing distillation tower separation corrugated plate packing

The earliest Metal Corrugated-plate packing was invented by Swiss Sulzer in 1977. They called Mellapak. It is formed from thin corrugated metallic plates, which plates has 4 mm pore, and uniform geometry arranged and neatly piled in the tower. Plate pore promotes liquid’s Radial dispersion and horizontal mixing. Plate’s Groove texture also improves liquid’s distribution and wettability.Since then, Structured packing’s apply, design, manufacture was widely promoted by many companies. Such as Swiss Kuhni’s Rombopak, Germany Montz’s Montz-pak, American Norton’s Intalox Structure packing, Jaeger’s Max-pak, Raschig’s Ralu-pac and so on.

Metal Random Packing Copper Pall Ring

Copper Pall ringBy minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal Pall Ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting.

Hot Sale High Performance 95mm Q-Pack For Various Commercial And Industrial Applications

Q-Pack is a durable and cost-effective packaging solution designed to protect products during storage and transportation. Made from high-strength materials, it is ideal for industries requiring reliable, efficient packaging for both manual and automated systems. Its design allows for easy stacking and handling, making it a versatile choice for various commercial and industrial applications.

Wet biological desulfurization tower teller rosette ring

It was invented by American Teller A J in 1956,so called Teller Rosette Ring. This product’s shape is like ellipse is consisted of many enlaced cirques. Due to the structure of polycyclic enabling, it will enlarge gas & liquid contacting area and prolong liquid retention time.Therefore, it was recognized a ideal packing in Gas washing,purification tower. Currently, Fxsino has developed three major series of Teller rosette ring. First series is ordinary product. Second Series is Nippon steel’s rosette ring, Third series is Tooth Type.According to the impact of structural differences on mass transfer and customer’s feedback, Ordinary teller rosette ring price is cheapest. Nippon Steel Teller rosette’s strength is best. Tooth type teller rosette ring’s absorption performance is better than others.

Short Description:

High Performance Plastic Random Packing, also known as Plastic Pall Ring, is a revolutionary solution in mass transfer technology. Developed by BASF, it features innovative inward ligules that enhance liquid-gas interaction, making it an ideal choice for various industrial processes such as distillation, absorption, and separation. Designed for durability and efficiency, it ensures cost savings while maximizing performance in chemical and petrochemical industries.

Product Detail

High Performance Plastic Random Packing (Plastic Pall Ring) enhances liquid-gas flow and improves mass transfer efficiency. With inward ligules designed by BASF, it is perfect for chemical reactors and distillation towers. Durable, cost-effective, and versatile in various industrial applications.

Enhanced Mass Transfer Efficiency
High Performance Plastic Random Packing, developed by BASF, features two inward ligules that significantly enhance liquid-gas flow. This improvement boosts mass transfer performance, making it ideal for chemical reactors and distillation towers.
Reliable Liquid-Gas Flow
With its unique design, the Plastic Pall Ring optimizes liquid-gas interaction. The addition of inward ligules allows for smoother flow, improving operational efficiency and reducing energy consumption in industrial processes.
Durable & Cost-Effective
Made from high-quality plastic, this random packing is built for long-lasting performance in various industrial applications. The enhanced durability of the Plastic Pall Ring ensures reduced maintenance costs and extended operational lifespans.
Versatile Application Across Industries
The Plastic Pall Ring excels in a variety of applications, including gas absorption, distillation, and separation. Its high mass transfer performance makes it an essential component for enhancing efficiency in chemical, petrochemical, and environmental industries.

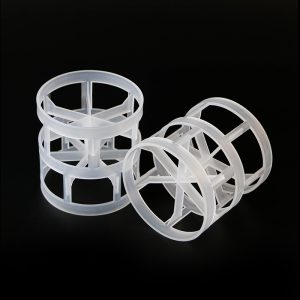

Plastic pall ring

Parameter table

Sizes (mm)	Surface (m2/m3)	Free Vol. (%)	Number (per m3)	Weight (kg/ m3)
16161	260	91	230000	141
25251.2	210	90	53500	82
38381.4	140	89	13500	54
50501.5	100	90	6500	51
76762.6	73	92	1930	58

Plastic Pall Ring Say Goodbye to Low Mass Transfer Rates with Best Sale High Performance 38mm 50mm Plastic Pall Ring

Short Description:

Product Detail

Parameter table
