Distillation Column Packing: How To Reduce Pressure Drop By 50% And Avoid Costly Selection Errors
For Petrochemical Procurement & Engineering Teams: Selecting the wrong distillation column packing can cost over $150,000 in lost production and energy waste. Since 2010, AYRTTER has specialized in solving these challenges. This 2024 guide shares our engineering methodology, backed by FRI data and 140+ global project cases, to help you select the optimal Structured Packing or Wire Mesh Packing for your specific service.
Guide Contents
1. The 4 Critical Metrics for Distillation Column Packing in 2024
At AYRTTER, we’ve moved beyond simple “surface area” metrics. Through our work with refineries and chemical plants, we’ve identified four key indicators that predict success:
📖 Key Terminology Definitions (For Readers)
HETP (Height Equivalent to a Theoretical Plate): Measures packing efficiency; lower values indicate better separation per meter of bed height.
ΔP (Pressure Drop): Resistance to vapor flow through packing; directly impacts vacuum tower energy consumption and capacity.
Flooding Point: Operational limit where vapor-liquid flow becomes unstable, causing efficiency to drop sharply.
Turndown Ratio: Ability of packing to maintain efficiency at operating loads below design capacity.
ΔP per Meter Bed Height (Pa/m) – The Energy Metric
AYRTTER’s Wire Mesh Packing series (e.g., AY-MX Series) typically achieves 40-50% lower ΔP than conventional structured packing. For a typical 3-meter diameter vacuum tower, every 1 kPa reduction saves approximately $8,000 to $12,000 annually in compressor energy costs. We engineer our mesh geometry to maintain open flow channels even under high vapor loads.
Flooding Capacity Margin (%) – The Throughput Metric

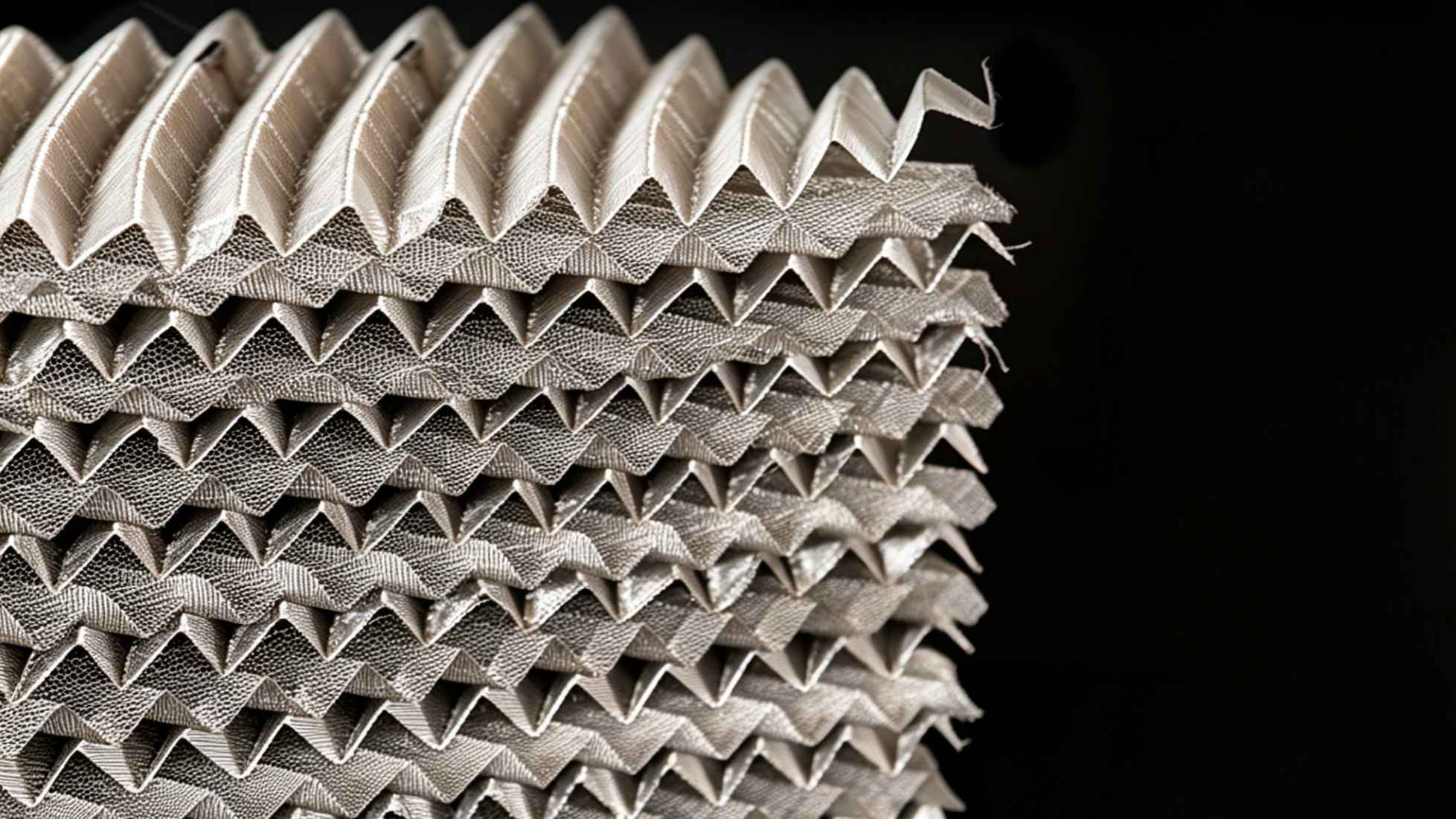

AYRTTER Structured Packing (e.g., AY-BX Series) is designed for high capacity. Our FRI-verified data shows 85-90% flooding capacity safety margins, compared to 60-70% for standard random packing. This allows operators to push throughput without risking unplanned shutdowns.
Turndown Ratio – The Flexibility Metric
AYRTTER designs ensure that packing efficiency remains stable at 30-50% of design load. Unlike competitors whose performance collapses below 60%, our textured surface technology ensures continuous liquid film coverage during startups and turndowns.
Fouling Resistance Index (FRI) – The Maintenance Metric
We categorize our packing by fouling potential. AYRTTER’s open-structured grids (FRI Score: 8/10) are ideal for FCC main fractionators, while our high-efficiency mesh (FRI Score: 3/10) is reserved for clean services. We help you choose the right geometry to extend run lengths between washes.
2. AYRTTER Product Performance Comparison
Based on Fractionation Research, Inc. (FRI) data and 140+ AYRTTER installations worldwide:
| Parameter | AYRTTER Wire Mesh (AY-MX) | AYRTTER Structured (AY-BX) | Standard Random (50mm) |
|---|---|---|---|
| ΔP Reduction Potential | 40-50% | 25-35% | Baseline |
| HETP (mm) C6/C7 system | 300-350 | 400-450 | 600-700 |
| Flooding Capacity (%) | 85% | 90% | 70% |
| Typical ROI Period | 8-12 Months | 10-14 Months | N/A |
AYRTTER Data Commitment: All performance data is backed by our in-house testing facilities and FRI verification. We provide specific performance curves for your exact operating pressure and temperature, not just generic catalog data.
3. The AYRTTER 5-Step Selection Framework
AYRTTER engineers use this proven framework to prevent the $150k mistake of mismatched packing selection:
Step 1: Diagnose the Real Constraint with AYRTTER
80% of packing failures stem from treating symptoms. AYRTTER’s technical team performs a root-cause analysis:
- If ΔP increased 15%+ in 6 months: Likely fouling. AYRTTER recommends open geometry (AY-BX Open).
- If purity varies with feed rate: Distribution issue. We audit your existing distributors.
- If energy costs spiked: Efficiency loss. We model HETP recovery with AY-MX mesh.
Step 2: Service-Specific Selection Matrix
AYRTTER matches packing geometry to your specific service:
AYRTTER Solution: AY-MX Wire Mesh
AYRTTER Solution: AY-BX Structured
AYRTTER Solution: AY-BX Open Grid
Step 3: Material Selection Guide
AYRTTER supplies materials certified to ASTM standards:
- 304/316L Stainless Steel: Standard hydrocarbons, pH 4-9.
- Duplex 2205: Sour service (H₂S >50 ppm), chloride stress cracking risk.
- Alloy 625/C-276: Severe acids, high-temperature chlorides.
Step 4: The Distributor Audit
AYRTTER emphasizes that packing is only half the equation. We provide distributor audits to ensure 200-300 distribution points per m², preventing the #1 cause of packing failure: maldistribution.
Step 5: Issue a Technical RFQ to AYRTTER
We respond with detailed performance guarantees, MTCs, and a project-specific inspection plan. AYRTTER’s typical response time is 24 hours for standard inquiries.
4. AYRTTER Expert Analysis: Data-Backed Insights
⚠️ Clear Warnings Based on AYRTTER Case Studies
Do NOT: Use high-density wire mesh packing in fouling systems like FCC main fractionators, despite its low ΔP. Fouling will quickly negate the advantage.
MUST DO: When upgrading packing, simultaneously audit or upgrade liquid distributors. Poor distribution is the #1 cause of new packing underperformance.
✅ Clear Recommendations Based on AYRTTER Experience
For Procurement: Compare Total Cost of Ownership (TCO), not unit price. AYRTTER data shows extra cost for high-performance packing is often recovered within a year through energy savings.
For Engineers: Request vendor-specific HETP curves for your exact system (e.g., C6/C7, xylenes), not generic data.

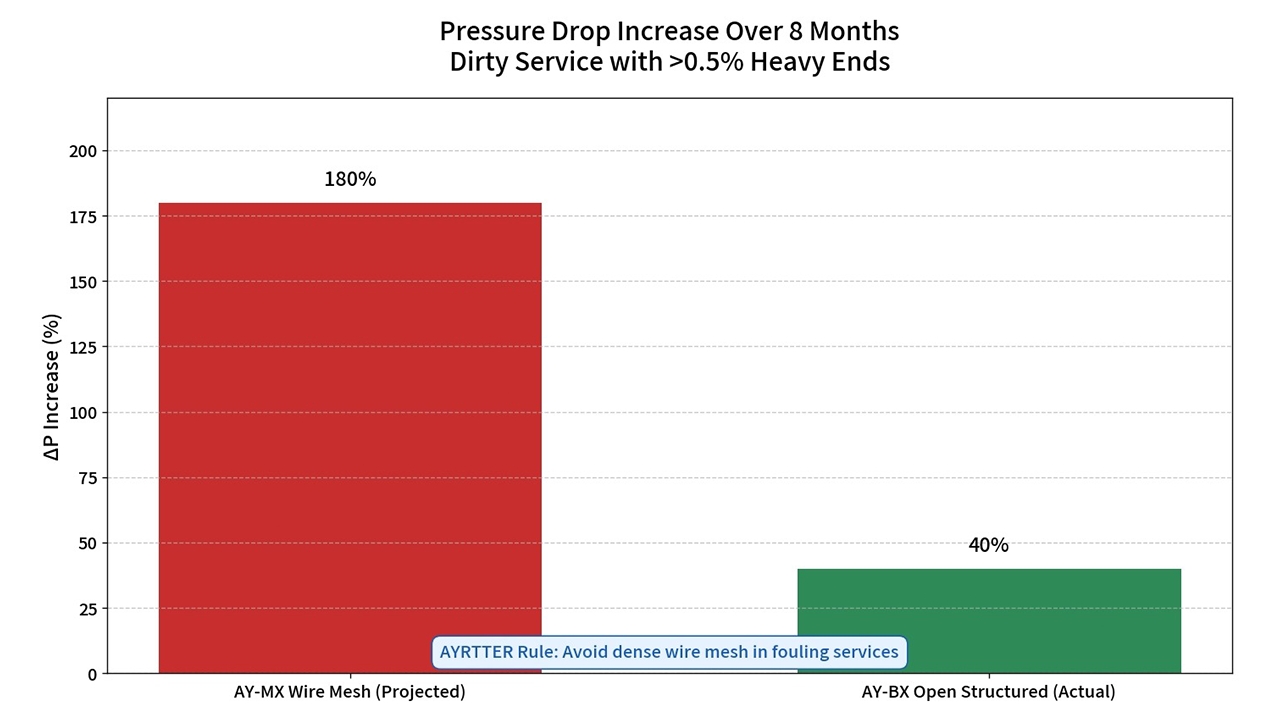

Case Study: Wire Mesh in Dirty Service
“A client wanted AY-MX Wire Mesh for a fouling service because of the low ΔP,” explains Mark Chen, AYRTTER’s Sales Director. “We advised against it. Data showed their service had >0.5% heavy ends. We provided AY-BX Open Structured instead. Result: ΔP increased only 40% in 8 months vs projected 180% for mesh.”
AYRTTER Rule: If service has >0.5% heavy ends or polymer precursors, avoid dense wire mesh.
5. AYRTTER ROI Calculator: Estimate Your Savings
Calculate Your AYRTTER Upgrade Savings
AYRTTER Example Calculation:
Scenario: 3m vacuum tower, 40 kPa ΔP, $0.10/kWh, 8000 hrs/year
- AYRTTER AY-MX Upgrade (40% ΔP reduction): $38,000 – $52,000 Annual Energy Savings
- Yield Improvement (2-3% more lights): $15,000 – $25,000
- Typical AYRTTER Upgrade Cost: $80,000 – $120,000
→ AYRTTER ROI: 8-14 months for most vacuum services
6. Frequently Asked Questions About AYRTTER Packing
Q: What’s the actual installed cost difference between AYRTTER Structured and Random Packing?
A: While AYRTTER structured packing costs 40-60% more upfront, installed costs differ by only 20-30%. AYRTTER structured installs 3-4x faster (crated vs dumped), saving $5-8k in labor per day. Total installed: AYRTTER Structured $80-120k vs Random $60-80k for a 3m tower.
Q: How does AYRTTER ensure quality and traceability?
A: AYRTTER provides full Material Test Certificates (MTCs) with EN 10204 3.1/3.2 options. We offer third-party inspection (SGS/BV) and maintain batch traceability for all alloys. Our packing is manufactured under ISO 9001:2015 certified processes.
Q: Can AYRTTER packing be retrofitted into existing towers?
A: Yes. AYRTTER specializes in revamp projects. Our modular crates are designed for easy installation through manways as small as 500mm. We provide 3D models and installation supervision to ensure perfect fit.
Q: Does AYRTTER offer pilot testing?
A: For critical applications, AYRTTER offers mini-pilot plant testing at our facility. We simulate your feed composition, pressure, and temperature to provide guaranteed performance data before you commit to a full-scale purchase.
Extended Reading: Engineering Details
Q: How to calculate mechanical stress of packing bed on tower wall?
A: Requires finite element analysis based on packing type, bed height, and operating pressure. AYRTTER provides this verification for large tower projects.
Q: What is the minimum wetting rate for wire mesh packing?
A: Depends on material and surface treatment. AYRTTER’s AY-MX series with special texture treatment reduces minimum wetting rate by approximately 20%.
Q: Are pressure drop correlations universal for random and structured packing?
A: No. Must use separately validated correlations (e.g., Eckert for random, SP correlations for structured packing).
Get Your AYRTTER Technical Proposal
Stop guessing. Contact AYRTTER’s engineering team today. Submit your tower parameters and receive a 12-page technical report with 3 packing options, ROI analysis, and a detailed project timeline.
Final Note / Practical Takeaway
Successful distillation column packing selection in 2024 isn’t about buying a “better” product—it’s about matching AYRTTER’s specific geometry to your exact constraint.
Remember: AYRTTER Wire Mesh (AY-MX) for ΔP in clean vacuum services. AYRTTER Structured (AY-BX) for capacity and turndown. AYRTTER Open Grid for fouling services. Always verify vendor data with FRI references, and never compromise on distribution quality. This AYRTTER approach consistently delivers 8-18 month ROI in refinery and petrochemical applications.
