Plastic Floating Water Pool Ball, Liquid Surface Covering Ball with Edges for water treatment

Product Categories

Featured products

high vapor capacity and efficiency plastic beta ring

Plastic Beta ring was invented by Koch-glitsch. Based on the analysis of its structure, it has not only attract cascade mini ring’s low aspect ratio’s advantage, but also increase inner circle in the packing’s middle position. Therefore, plastic Beta ring is an excellent tower packingIn addition, Beta ring’s inner arc tabs will increase uninterrupted flows of gas and liquid while providing additional drip points to enhance liquid film surface renewal for improved mass and heat transfer.The variation in the length of the internal tabs ensures high efficiency and optimal distribution. Open structure and preferred vertical orientation inhibits fouling by allowing solids to be more easily flushed through the bed by the liquid.

High Quality 16mm 25mm 38mm 50mm Metal Flat Ring for Indusrty

Metal Flat RingThe Metal Flat Ring is a high-performance industrial component made from durable metal materials. Its flat design makes it ideal for sealing, filtration, and gasket applications. Offering superior resistance to heat, corrosion, and wear, it is widely used in automotive, chemical, and power generation industries for reliable performance in demanding environments.

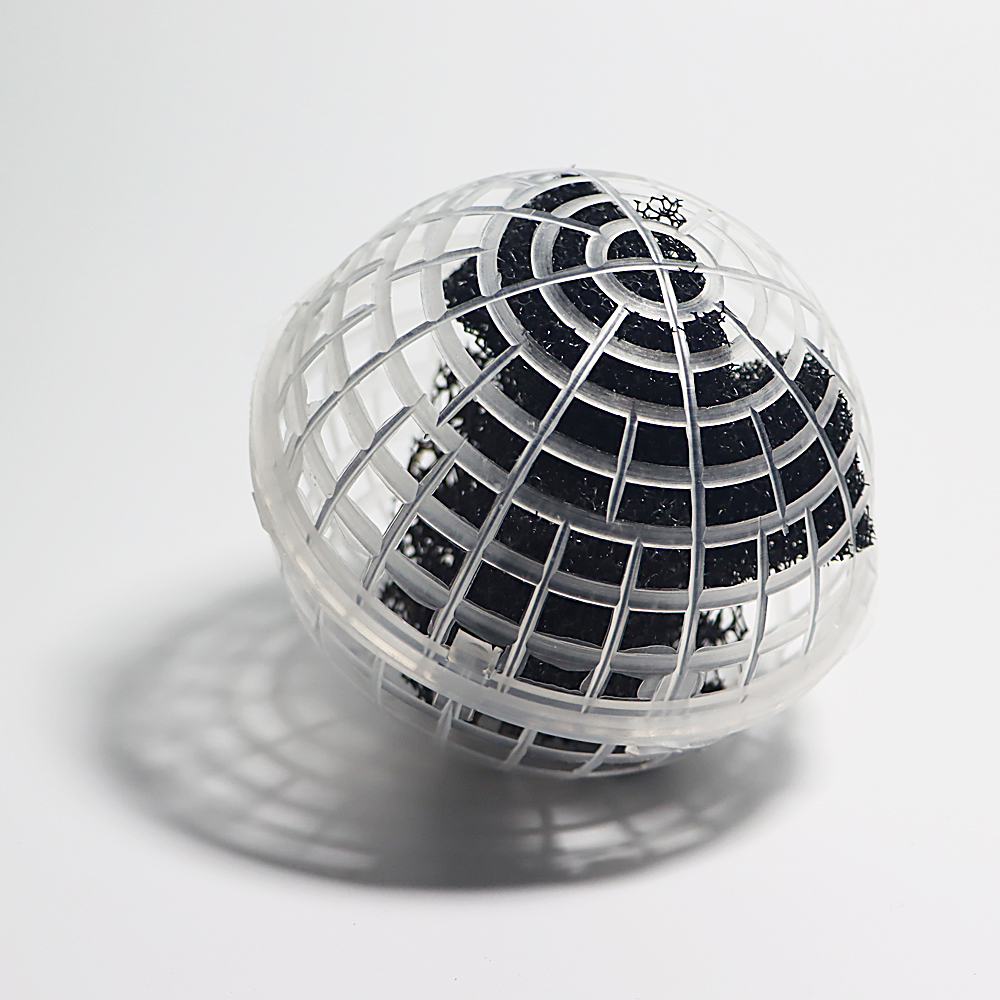

50mm 80mm 100mm Polyhedral Hollow Ball Bio Filter Media PP Floating Suspend Packing Bio Ball

Floating suspend packing bio balls are specialized media used in aquaculture, wastewater treatment, and aquarium filtration systems.

252Y plate corrugated packing distillation tower separation corrugated plate packing

The earliest Metal Corrugated-plate packing was invented by Swiss Sulzer in 1977. They called Mellapak. It is formed from thin corrugated metallic plates, which plates has 4 mm pore, and uniform geometry arranged and neatly piled in the tower. Plate pore promotes liquid’s Radial dispersion and horizontal mixing. Plate’s Groove texture also improves liquid’s distribution and wettability.Since then, Structured packing’s apply, design, manufacture was widely promoted by many companies. Such as Swiss Kuhni’s Rombopak, Germany Montz’s Montz-pak, American Norton’s Intalox Structure packing, Jaeger’s Max-pak, Raschig’s Ralu-pac and so on.

High gas-liquid contacting packing Metal cascade Mini ring

When liquid flows downward packing’s surface to become liquid droplet,these droplet fall down the next packing’s surface to form interflow.After that, when liquid droplet contacts with the rising gas, material was be transferred.Gas & liquid’s contacting basically principle is collision type surface’s continuously update.Metal cascade mini ring’s two end’s round turnup and large wall’s area will promote liquid’s continuously interflow and shunt to achieve surface’s update. Therefore, it can be regarded as one high gas-liquid contacting efficiency metal random packing.

Plastic pall ring PP PVDF CPVC 25 38 50

Plastic Pall ring birth is aim to overcome Raschig rings wall flow, Internal channels are not easy to wet,Long gas return path and so on. Since birth, Plastic Pall ring was recognized the common random packing in mass transfer field. Widely apply in absorption, scrubbing and stripping field.Under the same operation condition, Plastic Pall ring’s air velocity flux is 50% larger than the Raschig ring, and mass transfer efficiency is 30% higher.By minimizing the number of contours and crevices that can cause liquid hold-up and potential entertainment, Plastic Pall ring’s opened cylinder walls and inward bent protrusions allow greater capacity and lower pressure drop than standard cylindrical rings.Plastic pall ring PP PVDF CPVC 25 38 50

Plastic pall ring PP PVDF CPVC 25 38 50: Plastic pall ring PP PVDF CPVC 25 38 50 invented by German BASF,the first generation Plastic Random packing. To compared with Raschig ring.

Short Description:

Covering Ball is injection process. Other is foaming process. Owing to Injected cover ball’s weight is very light, it is very easy to wash way by strong water flow. Therefore, our company’s technical staffs have placed one solid steel ball inside the sphere. This change has not only increase the stability of the center of gravity, but also avoid of be blown way by strong wind. The overlapped edge will short Floating cover’s void fraction so as to reduce heat loss and evaporation rate.Finally. The combination of aerators and mixers with Floating cover leads to improved biological treatment performance and consistent high-quality effluent.As for Foamed Liquid surface cover ball, due to the processing is foaming technology, it is very easy to soften under long time exposure.

Technical Parameter of Covering Ball

Technical Parameter
Item	Size (mm)	Density G/m³	Application Temperature ℃	Anti-pressure Mpa	Bulk number Pieces/m²	Void rate %	Covering rate %	PH
Covering ball	Φ40	0.5	≤120	≤0.4	720	95	91	1-1.4
Covering ball	Φ50	0.5	≤120	≤0.4	500	95	91	1-1.4
Covering ball with border	Φ40	0.3	≤120	≤0.4	666	93	97	1-1.4
Covering ball with border	Φ80	0.5	≤120	≤0.36	232	95	99	1-1.4
Liquid-surface covering ball	Φ40	0.3	≤120	≤0.4	666	93	97	1-1.4
Liquid-surface covering ball	Φ80	0.5	≤120	≤0.36	232	95	99	1-1.4
Lozenged covering ball	Φ50	0.3	≤120	≤0.4	500	95	91	1-1.4

Trade Details of Covering Ball

Related Trade Information
HS Code	3926909090
Package	1: Two Super sacks on Fumigation Pallet 2: 100L plastic woven bag on Fumigation Pallet 3: 500500500 mm carton on Fumigation Pallet 4: Upon your requirement
Process Method	Injection
Material	PP,PVC,PFA,PE,CPVC,PVDF,PPS.PES,E-CTFE,FRPP and so on
Typical Application	1.prevent spill-over and volatilizing of acid-base gas 2.reduce environmental pollution 3.used in demineralized water 4.isolates water from air and reduce the effect of CO2, O2,dust and impurity on demineralized water
Production time	7 days against one 20GP container loading quantity
Executive standard	HG/T 3986-2016 or refer to your detailed requirement
Sample	Free samples within 500 Grams
Other	Accept EPC turnkey,OEM/OEM,Mold Customization,Installation&Guidance,Test, Entrusted design service etc.

Typical Application of Covering Ball

1. prevent spill-over and volatilizing of acid-base gas

2. reduce environmental pollution

3. used in demineralized water

4: isolates water from air and reduce the effect of CO2, O2,dust and impurity on demineralized water

Feature of Covering Ball

1: 95-99% coverage ratio insures large reduction of emissions.

2: Adjusts to variation of the liquid level by spreading & stacking

3: Heating cost reduced by up to 85%

4: made of long lasting, UV resistant, virgin HDPE

Ayrtter mainly developed in mass transfer product, tower internals, wastewater treatment filler, VOCS series, cooling tower filler, random & structured packing, EPC project and on. Furthermore, owned 2 international patents and 5 Chinese patents on the development journey.
