Short Description:

Designed for efficiency, durability, and precise reaction control, Metal Bubble Caps are the best choice for optimizing chemical reactors in demanding environments.

Product Detail

Maximize chemical reaction efficiency with Metal Bubble Cap trays. Improve vapor-liquid contact, enhance performance, and reduce pressure drops for better chemical processing.

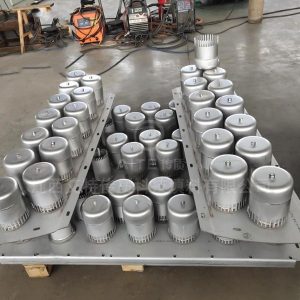

The Ultimate Tool for Reaction Efficiency: Metal Bubble Cap

Metal Bubble Cap trays are engineered for optimal vapor-liquid contact in chemical reactors. With their intricate design, they provide superior liquid handling and precise control over vapor flows.

Enhanced Vapor-Liquid Contact for Maximum Reaction Control

Each metal bubble cap is designed to increase vapor contact with liquid, enhancing reaction efficiency while minimizing pressure drop—critical for optimal reaction rates and increased output.

Superior Control, Higher Performance, Lower Pressure Drop

Unlike conventional trays, the bubble cap offers higher control over vapor flow, allowing your chemical reactions to run smoother, more efficiently, with less energy wasted in overcoming pressure drops.

Precision Engineering: Guaranteed Reliability in the Harshest Conditions

Built to endure the most challenging industrial conditions, the metal bubble cap provides unmatched durability, ensuring continuous operation even in high-pressure, high-temperature environments.
