Short Description:

Metal flat rings are crucial in various industrial processes, contributing to efficiency and effectiveness in separation, filtration, and reaction systems. Their durability and versatile applications make them a popular choice in chemical engineering and related fields.

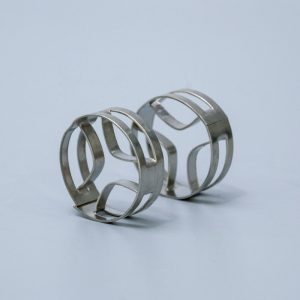

Metal Flat Rings

Size(mm)		Bulk density (304,kg/m³)	Number (per m³)	Surface area (m²/m³)	Free volume (%)	Dry Packing Factor m^-1
0.5″	16.55.50.3	333	600000	330	95.8	375.6
0.5″	16.55.50.4	462	600000	330	94.2	395.3
0.5″	16.55.50.6	718	600000	330	90.9	439.2
1″	2590.3	221	155000	219	95.5	238.5
1″	2590.4	306	155000	219	96.6	246.6
1″	2590.6	477	155000	219	98.4	264
1.5″	3812.70.6	316	48000	145	98.1	156.9
1.5″	3812.70.8	423	48000	145	97.4	164
2″	50170.6	250	21500	115	98.3	126.4
2″	50170.8	334	21500	115	97.9	130.7
3″	76250.8	202	5800	69	98.6	74.9
3″	76251.0	256	5800	69	98.2	76.5
3″	76251.2	310	5800	69	99.0	78.1

Metal flat rings are versatile components used in various industrial applications, primarily for packing and filtration.

Characteristics
Material: Typically made from metals such as stainless steel, copper, brass, or carbon steel, providing strength and durability.
Shape: Flat, ring-shaped design that allows for easy stacking and packing in columns or reactors.
Surface Finish: Can be available in various finishes, including polished or coated, to enhance corrosion resistance.
Applications
Distillation Columns: Used as packing material to provide surface area for vapor-liquid contact, aiding in the separation of components.
Absorption Towers: Effective in gas absorption processes where gases are dissolved in liquids.
Filtration Systems: Serve as a support medium in filters to facilitate the flow of fluids while retaining solid particles.
Chemical Reactors: Support catalysts and enhance mass transfer in reaction processes.
Benefits
High Strength: Metal construction provides robustness and resistance to high temperatures and pressures.
Corrosion Resistance: Depending on the material, can offer excellent resistance to corrosive environments.
Improved Flow Dynamics: The flat ring design allows for efficient fluid flow and enhances contact between phases.

Ayrtter mainly developed in mass transfer product, tower internals, wastewater treatment filler, VOCS series, cooling tower filler, random & structured packing, EPC project and on. Furthermore, owned 2 international patents and 5 Chinese patents on the development journey.
