AYRTTER 2A Cascade Mini Ring (CMR) is a high-efficiency metal random packing designed for superior mass transfer and minimal pressure drop. With an optimized H/D ratio of 0.5 and a unique tapered flange design, it ensures excellent gas-liquid distribution and high operational flexibility.Key Specs (DN38): Specific Surface Area ≈ 155 m²/m³ | Void Fraction ≈ 95% | Bulk Density ≈ 320 kg/m³.Materials: 304/316L Stainless Steel, Carbon Steel, Titanium. Applications: Fine chemicals, VOC recovery, and CO₂ capture systems. Contact us for a quote!

The earliest random packing Plastic raschig ring

Plastic Raschig ring is a earliest development of random packing,which its height is equal to outside diameter. Since Plastic Raschig Ring was invented by German Chemist Friedrich Rashig in 1914, Tower packing’s development had entered the track of science.In actual application, owing to its closed cylindrical structure, it will easy to lead to liquid’s bias flow,channel flow and wall follow phenomenon’s happen. Furthermore, big liquid hold-up in packing layer will increase air & liquid passing time and form big resistance. Since 1940s, Plastic Raschig Ring has been gradually replaced by Pall ring. However, owing to Raschig ring gave the packed column consistency and dependability,so Raschig Rings remain one of the most widely used tower packing materials,so it is one of the most widely used tower packing materials.

high flooding point & evenly gas-liquid distribution plastic ralu ring

Plastic Ralu ring is an improved Pall ring. The mainly improvement is to increase two ends turn-ups and wall’s thickness. If existing columns are equipped with Plastic Ralu ring’s, a decrease in operating costs and higher separation efficiency at a constant bed height will be achieved. At an unchanged separation efficiency, the bed height can be reduced, thus decreasing the pressure drop.Two ends turn-ups is similar Cascade Mini Ring structure. When liquid passing Plastic Ralu ring surface, it will follow down along with two turn-up.Meanwhile, inner wetteable surface area is bigger than pall ring. Therefore, Plastic Ralu ring can replace the Pall ring in some fileds.

Plastic Super Intalox Ring

Plastic Super Intalox Ring was one improved ring based on Intalox ring’s structure. The biggest improvement is that Plastic Super Intalox saddle’s arc profile will be change wavy or jagged profile. meanwhile, increase some pores in the arc liquid channel’s middle position. This structure’s change not only increase packing’s contacting gap, but also improve gas & liquid’s movement and distribution in packing layer.Plastic super intalox ring channel is like Open Semi-Round or Arc Type. It is not speed up air & liquid movement and contacting, but also decrease movement resistance. However, Open Semi-round or Arc Type also caused Plastic Super intalox saddle’s overlapping and interweaving. Instead, it will lead to a decrease in mass transfer efficiency.Further, it is less sensitive to liquid distribution quality and has higher liquid hold-up and residence time for those services that benefit from such characteristics.

Liquid collection redistributor

Liquid collector’s major function is collecting the liquid and re-distributing the gas. Usually, liquid collector is in the top of packing bed. The distance between liquid collector & packing bed is 150-200 mm.When the liquid falling down along with packing,due to upward gas’s speed is not same, gas’s speed toward center is big and toward tower wall is small. It is very easy to form wall flow phenomenon. In order avoid of wall flow phenomenon’s happened and improve mass transfer efficiency, we should install liquid collector or liquid re-distributor to improve liquid’s evenly distribution. Of course, according to different processing requirement, we can install one or many Liquid collectors in the different height’s position.

Outstanding 250x 250y Chemical Tower Structured Packing Metal Corrugated-Plate Packing

Metal Corrugated-Plate Packing is designed to enhance mass transfer efficiency in industrial separation processes like distillation, absorption, and extraction. Its corrugated metal structure increases surface area, allowing for better gas-liquid contact and reduced pressure drop. Widely used in chemical plants, it ensures durable, energy-efficient separation.

Short Description:

Product Detail

AYRTTER Brand

AYRTTER Metal Cascade Ring (CMR) – 2A (DN38)Type

Optimized Height/Diameter Ratio, Low Pressure Drop, High Capacity, High Mass Transfer Efficiency | Suitable for Fine Chemicals, Environmental Protection, Pharmaceutical Industries

🔬 General Characteristics & Core Advantages

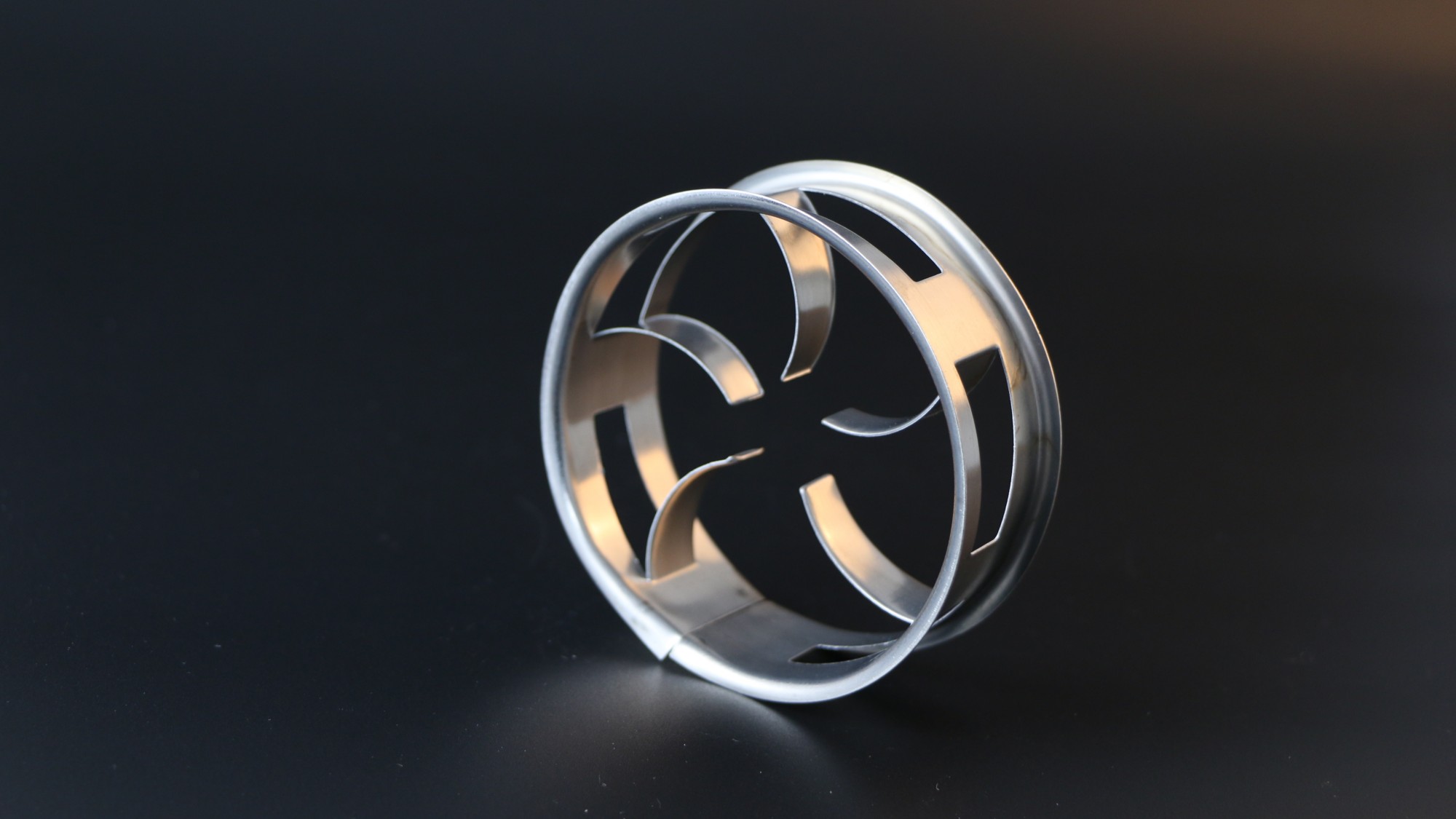

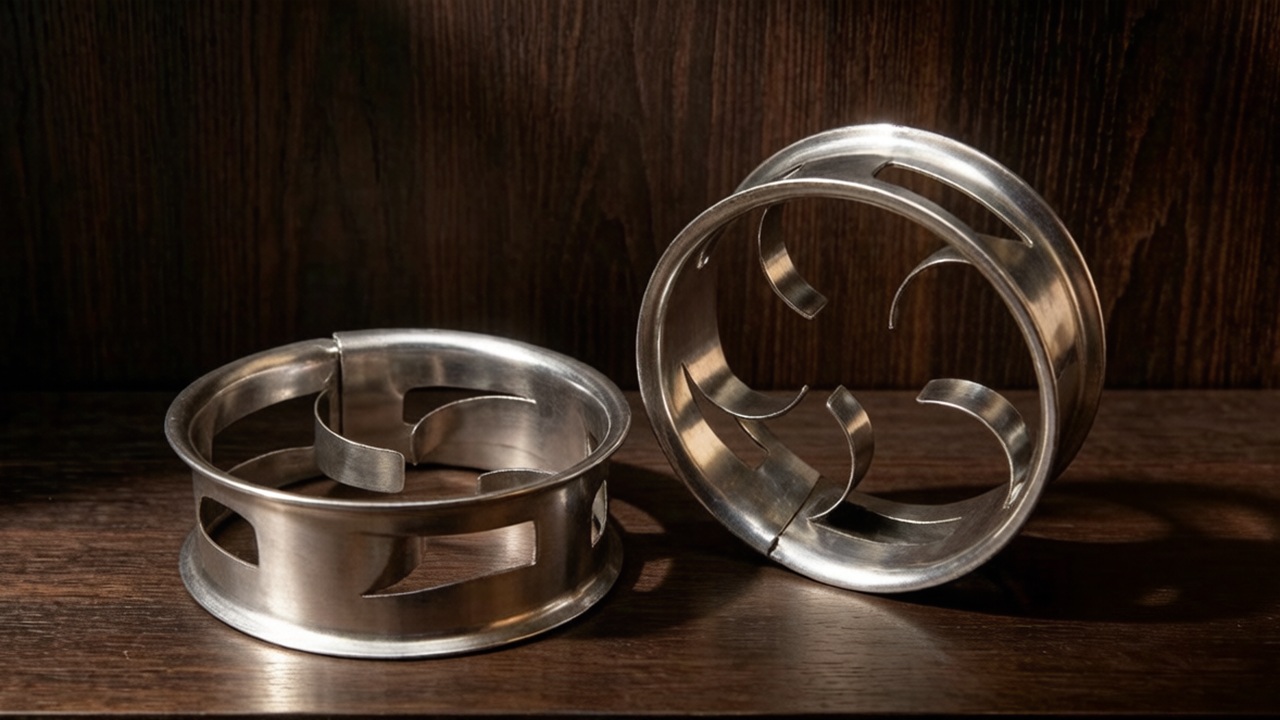

AYRTTER Metal Cascade Ring (2A Type) is a high-performance random packing designed for superior distillation and absorption. It features an optimized low height-to-diameter ratio and a unique flange design that promotes point-contact stacking.

🏆 Six Core Advantages

Low Pressure Drop
High Capacity
High Efficiency
Anti-Fouling
Wide Range
Long Life

⚙️ Materials & Operating Conditions

Common Materials: 304/304L, 316/316L SS, Carbon Steel, Titanium.
Temperature Range: -200℃ ~ 600℃
Suitable Media: Acids, Alkalis, Organic Solvents.

📏 2A (DN38) Model Specifications

2A Metal Cascade Ring (DN38) - Wholesale Premium Quality

Medium Size | Balanced Performance | Industry Standard

Model	2A (DN38)
Dimensions (OD×H×Thickness)	φ38 × 19 × 0.6 mm
Specific Surface Area	≈ 155 m²/m³
Void Fraction	≈ 95%
Number per m³	≈ 48,000 pcs
Bulk Density (304 SS)	≈ 320 kg/m³

🧮 Packing Sizing Calculator

Estimate the required packing volume, quantity, and weight for 2A CMR.

Column Inside Diameter (m)

Packing Bed Height (m)

Packing Material

³³³³

📊AYRTTER Performance Comparison (Schematic)

Metric	2A CMR	Pall Ring
Mass Transfer	High	Medium
Pressure Drop	Low	Medium
Capacity	High	Medium

Cascade Ring

Parameter table

AYRTTER BRAND

Metal Cascade Ring (CMR)

High-Efficiency Random Packing – Technical Parameters

Model: 2A (DN38)

📊 Product Specifications Table

Parameter Category	Parameter Description	Value / Specification
Basic Information	Model Number	2A (DN38)
Physical Dimensions	Dimensions (Outside Diameter × Height × Wall Thickness)	φ38 × 19 × 0.6 mm
Physical Dimensions	Height/Diameter Ratio (H/D)	≈ 0.5 (1:2)
Geometric Properties	Specific Surface Area	≈ 155 m²/m³
Geometric Properties	Void Fraction (Porosity)	≈ 95 %
Geometric Properties	Number of Pieces per Cubic Meter	≈ 48,000 pcs/m³
Material Properties	Bulk Density (304 Stainless Steel)	≈ 320 kg/m³
Material Properties	Bulk Density (316 Stainless Steel)	≈ 340 kg/m³
Material Properties	Bulk Density (Carbon Steel)	≈ 410 kg/m³
Material Properties	Bulk Density (Titanium Alloy)	≈ 750 kg/m³
Performance Parameters	Dry Packing Factor (Estimated)	≈ 42 m^-1
Material Options	Available Materials	304/304L, 316/316L Stainless Steel, Carbon Steel, Titanium, Monel, etc.
Operating Conditions	Temperature Range	-200℃ ~ 600℃
Structural Features	Design Characteristics	Tapered flange at one end, wall openings, internal extensions
Performance Features	Key Advantages	Low Pressure Drop High Capacity High Mass Transfer Efficiency Good Fouling Resistance
Application Scope	Suitable For	• Medium-sized tower distillation • Gas absorption towers • Heat-sensitive material separation • General industrial waste gas treatment

📝 Important Notes:

1. All parameter values are typical values based on 304 stainless steel material. Actual values may vary slightly depending on manufacturing tolerances.

2. Bulk density varies with material type. Values shown are for reference only.

3. Metal Cascade Ring (CMR) features point-contact stacking which significantly improves gas-liquid distribution and reduces wall flow/channeling.

4. This is the 2A (DN38) model, offering balanced performance between mass transfer efficiency and pressure drop.

Metal Cascade Ring (CMR) | Model: 2A (DN38) | Data is for reference only
